wall mounted

ClassicLine frost-protected self-draining body safety shower

Article-No.: BR 885 085

The B-SAFETY body safety showers of the ClassicLine series are made of high-quality materials and are just as suitable for use in laboratories and research as they are for rough use in industry. B-SAFETY’s green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Projection: 470 mm
  • Installation height: 2345 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification- and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

Technical Description

  • 3-way-ball-valve ¾” of brass that automatically drains the shower downwards when not in use, water inlet ¾” female
  • spindle extension, standard length 800 mm, can be shortened to the appropriate length on site

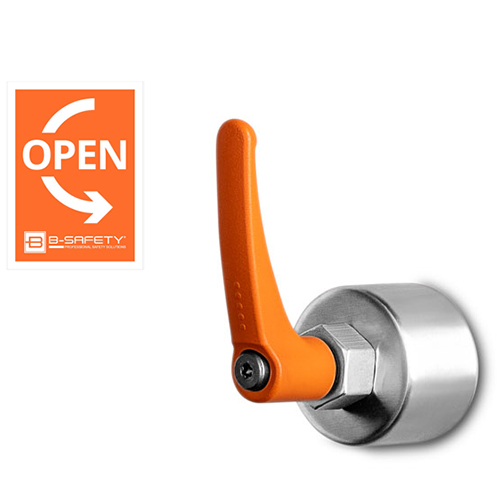

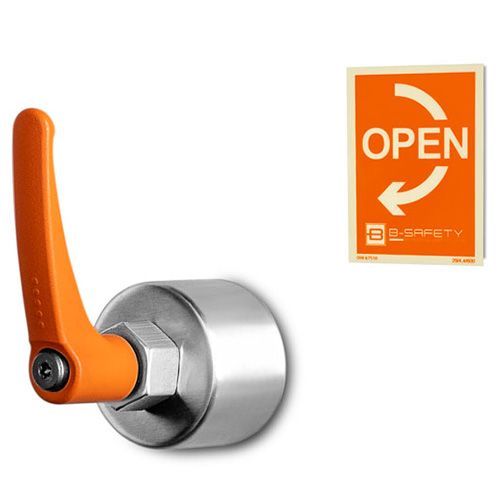

  • lever for ball valve
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • push-on rosette of polyamide to cover the installation

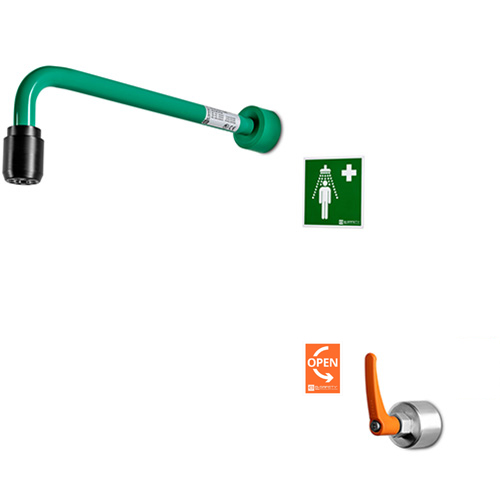

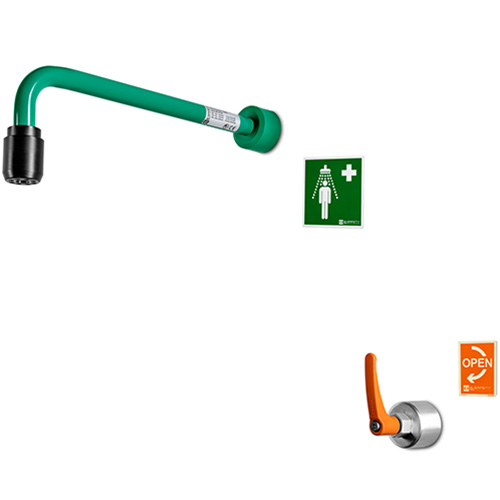

  • wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 470 mm
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 2345 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
