wall mounted, exposed pipework

PremiumLine rod operated safety shower valve

Article no.: BR 022 995

B-SAFETY body safety showers are available in a modular system. The emergency shower arms and emergency shower valves can be purchased individually and adapted to the conditions on site. In this way, almost all conceivable installation requirements can be realized.

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Dimensions (H x W x D): 700 x 172 x 80 mm
  • Operating pressure: 1 to 5 bar
  • Flow rate: at least 60 l/min at 1 bar flow pressure
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • GOST-R, Certificate-No. 0615463 0615463

Product description

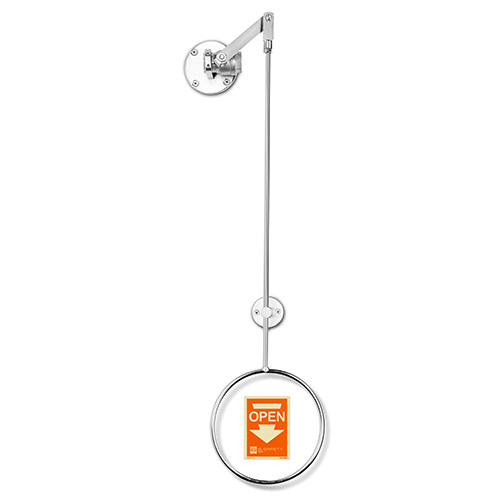

The rod operated safety shower valve consists of a robust ball valve with drinking water approval, which can be mounted either to the right or left of the door. The volume flow is at least 60 liters / minute at 1 bar flow pressure. An additional holder ensures positioning of the pull rod.

Technical Description

  • ball valve with pull rod actuation on wall flange of stainless steel, can be mounted either on the right or left side of the door, DIN-DVGW tested and certificated, water inlet ¾” female
  • flow rate at least 60 l/min at 1 bar flow pressure
  • pull rod with ring handle made of stainless steel, polished, length 700 mm
  • holder for pull rod made of stainless steel, polished
  • opening angle 90°, not self-closing
  • mounting height for lower edge of pull rod handle according to the standards listed below: 0 to 1750 mm height above floor
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
