stainless steel, above door installation

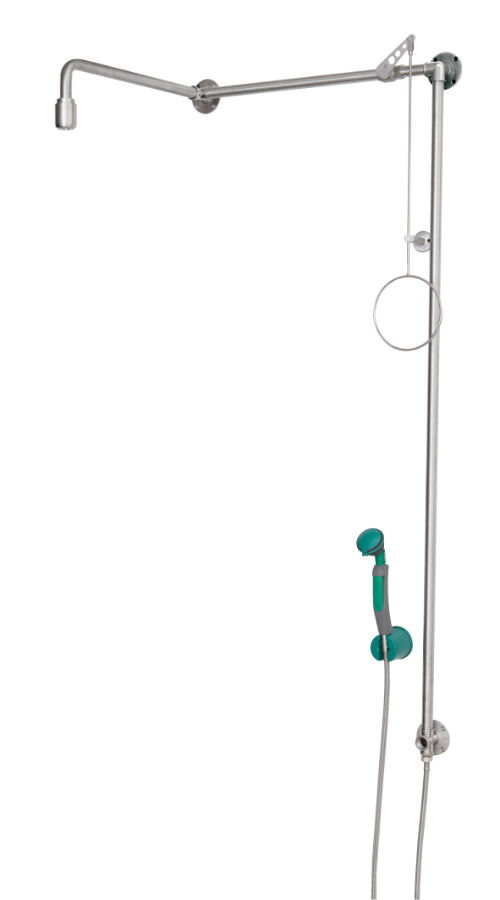

PremiumLine body safety shower with hand-held eye shower

Article no.: BR 873 095

The B-SAFETY emergency shower combinations – combinations of body emergency showers and eye showers – are more space-saving compared to a single installation. This results in the possibility of creating a central point of contact for first aid. Through the possible combination with a hand-eye shower or hand shower, an injured person also has the possibility to partially care for minor injuries without having to immediately use the body safety shower.

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Total height: 1625 mm
  • Projection: 525 mm
  • Installation height: 810 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

Technical Description

  • including top and bottom water inlet ¾” female for installation in circulation lines, plug ¾” of stainless steel
  • wall flange made of stainless steel, polished, water inlet ¾” female
  • inclusive ClassicLine hand-held eye shower with one spray head 45°, wall mounted
  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, 45° angled, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • robust table and wall mounting bracket with positioning of the shower, incl. fastening-parts kit with nut M28x1,5mm and 2 screws M5 for mounting difficult to access, sealing to table surface with O-Ring
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • two connection pipes ¾“ of stainless steel, polished, total length 1500 mm
  • wall flange as T-version with 4 mounting holes of stainless steel, polished, water inlet ¾” female
  • connection adapter of stainless steel, polished, with integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • connection pipe ¾“ of stainless steel, polished, length 75 mm
  • ball valve ¾” of stainless steel, with pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, polished, length 700 mm
  • holder for pull rod made of stainless steel, polished
  • connection pipe ¾“ of stainless steel, polished, length 500 mm
  • wall flange with 4 mounting holes of stainless steel, polished, water inlet ¾” female
  • wall shower arm ¾“ of stainless steel, polished, projection 525 mm
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 810 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
