above door installation

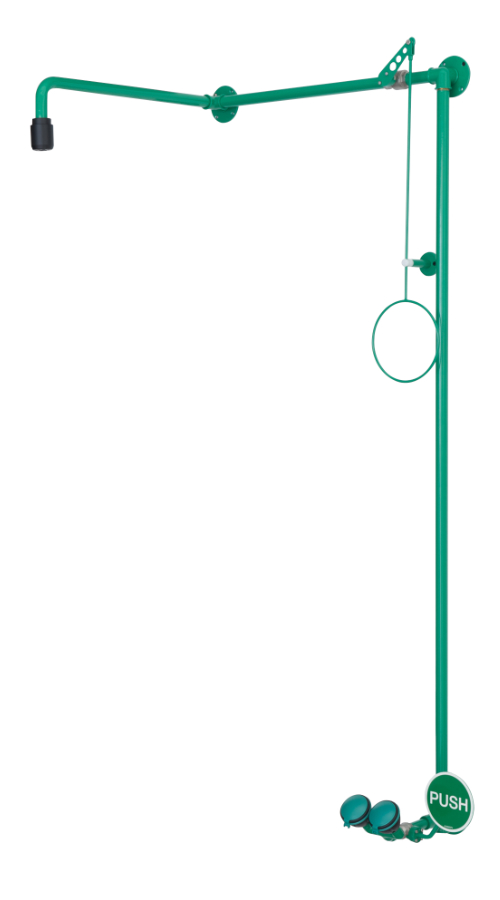

ClassicLine body safety shower with eye shower

Article no.: BR 871 085

The B-SAFETY emergency shower combinations – combinations of body emergency showers and eye showers – are more space-saving compared to a single installation. This results in the possibility of creating a central point of contact for first aid. Through the possible combination with a hand-eye shower or hand shower, an injured person also has the possibility to partially care for minor injuries without having to immediately use the body safety shower.

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Total height: 1625 mm
  • Projection: 525 mm
  • Installation height: 810 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the ClassicLine series are made of high-quality materials and are just as suitable for use in laboratories and research as they are for rough use in industry. B-SAFETY’s green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

Technical Description

  • including top and bottom water inlet ¾” female for installation in circulation lines, plug ¾” of stainless steel
  • wall flange with 4 mounting holes of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • integrated ClassicLine safety eye shower with two spray heads 45°
  • connection pipe of stainless steel for easy installation and alignment of the shower, chemical resistant green powder coated, water inlet ¾” male
  • ball valve ½” of made of dezincification-resistant brass, with PUSH-lever actuation, DIN-DVGW tested and certificated
  • big push plate made of steel, chemical resistant green powder coated, length 130 mm, with large signal “PUSH”, luminescent according to DIN 67510
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2 to 5 bar flow pressure
  • high-performance spray heads for large-scale dispersion of water, 45° angled, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism, mounted over distributor fork
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • two connection pipes ¾“ of stainless steel, chemical resistant green powder coated, total length 1500 mm
  • wall flange as T-version with 4 mounting holes of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • connection adapter of stainless steel, polished, with integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 75 mm
  • ball valve ¾” stainless steel, with pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
  • holder for pull rod made of steel, chemical resistant green powder coated
  • connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 500 mm
  • wall flange with 4 mounting holes of stainless steel, chemical resistant green powder coated, water inlet ¾” female
  • wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 625 mm
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 810 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
