wall mounted, recessed version

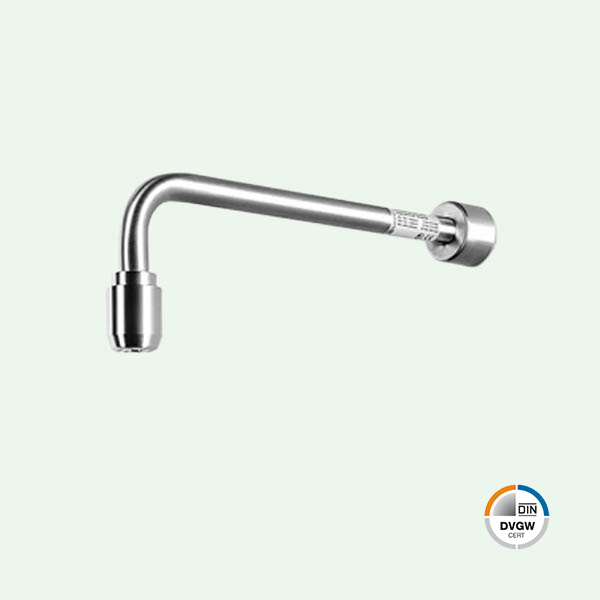

PremiumLine safety shower arm

Article no.: BR 072 095

B-SAFETY body safety showers are available in a modular system. The emergency shower arms and emergency shower valves can be purchased individually and adapted to the conditions on site. In this way, almost all conceivable installation requirements can be realized.

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Projection: 470 mm
  • Installation height: 2345 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 litres / minute
  • Water inlet: ¾“ male

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The emergency shower arm is equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

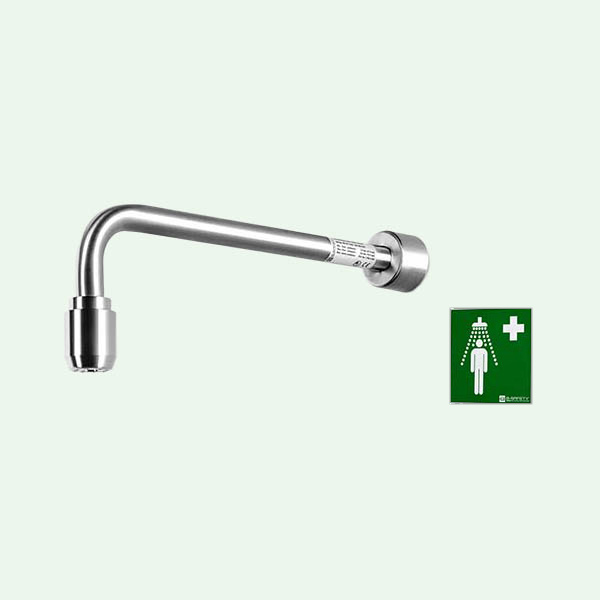

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

Technical Description

  • wall shower arm ¾“ made of stainless steel, polished, projection 470 mm, water inlet ¾” male
  • push-on rosette of polyamide to cover the installation
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 2345 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
