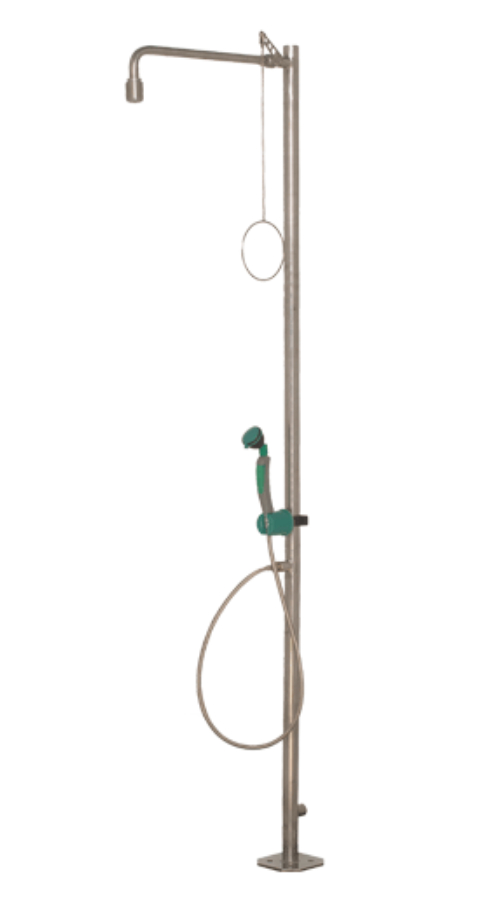

PremiumLine body safety shower with hand-held eye shower with one spray head 45°
The freestanding industrial safety showers are always used when wall mounting of the shower is not possible or when a central point of contact for first aid is to be created. It also makes sense to use them in large halls and production facilities. A big advantage is the good visibility of the shower from all sides. The freestanding safety showers can be optionally adapted to the requirements on site with a wide range of options.
Technical Specifications
- Material: stainless steel
- Surface: polished
- Total height: 2300 mm
- Projection: 630 mm
- Operating pressure: 1.5 to 3 bar
- Flow rate: 50 l/min (75/110 l/min)
- Water inlet: 1 ¼” female
Norms / Approvals
- EN 15154-2:2006
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014
- DIN-DVGW, DVGW, NW-0416CL0425
- DIN-DVGW, DVGW, NW-0417CL0263
- GOST-R, Certificate-No. 0615463 0615463
Product description
The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.
The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcificationand maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.
Technical Description
- including top and bottom water inlet 1 ¼” female for installation in circulation lines, plug 1 ¼” of stainless steel
- base plate with 4 mounting holes of stainless steel, polished, diameter 200 mm
- stand pipe 1 ¼” of stainless steel three-part, polished, with top and bottom water inlet 1 ¼” female, total height 2300 mm
- connection piece of stainless steel, for easy installation and alignment of the shower
- ball valve ¾” of stainless steel, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
- pull rod with ring handle of stainless steel, polished, length 700 mm
- wall shower arm ¾“ of stainless steel, polished, projection 630 mm
- integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
- high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
- sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
- inclusive ClassicLine hand-held eye shower with one spray head 45°, for mounting on standpipe, position and orientation freely selectable
- ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
- high-performance spray head for large-scale dispersion of water, 45° angled, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism
- integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
- integrated backflow preventer to protect the drinking water
- stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
- sturdy wall bracket with positioning of the shower, including mounting kit for mounting on the standpipe
- sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
- according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
- according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
- DIN-DVGW tested and certificated
