PremiumLine frost-protected self-draining eye shower
Permanently installed eye showers are the best solution for many applications in laboratory, warehouse and industry. These showers are always well visible from all sides. The large PUSH lever is photoluminescent and therefore easy to find even in the dark and visibility problems. Eye showers with catch basin catch and drain the used water.
- Material: stainless steel, brass
- Surface: polished
- Projection: 265 mm
- Installation height: 900 mm
- Operating pressure: 1.5 to 3 bar
- Flow rate: 14 litres / minute
- Water inlet: ¾“ female
Norms / Approvals
- EN 15154-2:2006
- ANSI Z358.1-2014
- GOST-R, Certificate-No. 0615463 0615463

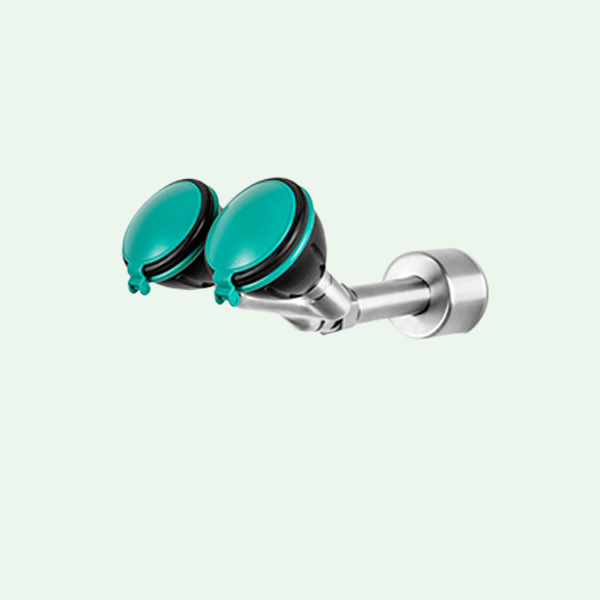

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of DIN EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.
The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust caps on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure. The large holes in the shower heads prevent standing water and thus calcification.

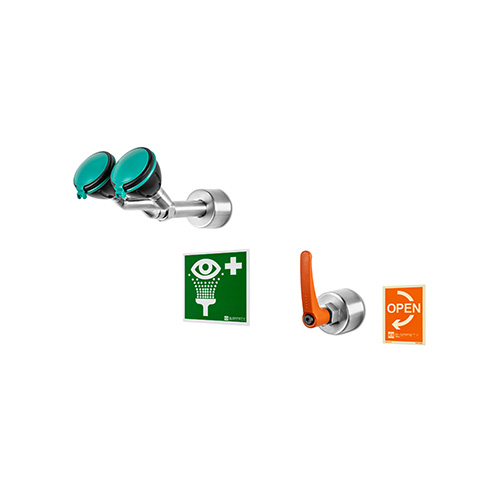

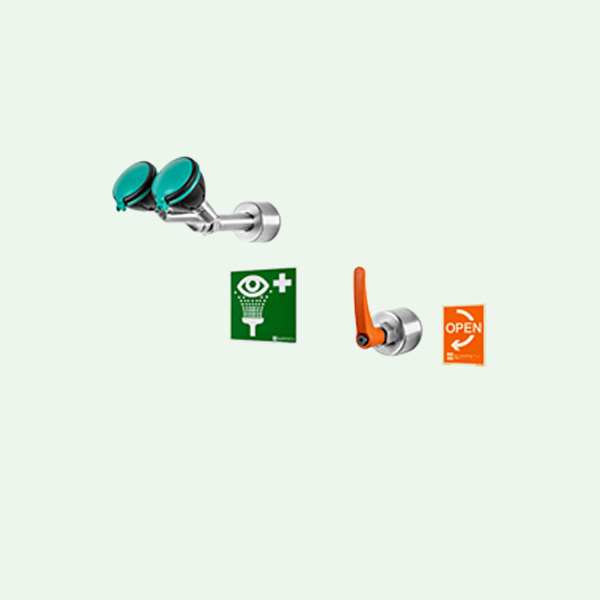

- 3-way-ball-valve ¾” of brass that automatically drains the shower downwards when not in use, water inlet ¾” female
- spindle extension, standard length 800 mm, can be shortened to the appropriate length on site
- lever for ball valve
- wall flange with 4 mounting holes made of stainless steel, polished, water inlet ¾” female, from behind through the wall
- connection pipe of stainless steel, polished, length 75 mm
- integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
- high-performance spray heads made of stainless steel for large-scale dispersion of water, polished, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
- sign for eye shower according to DIN EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
- mounting height 900 mm (± 200 mm)
- according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014 and DIN EN 15154-2:2006
